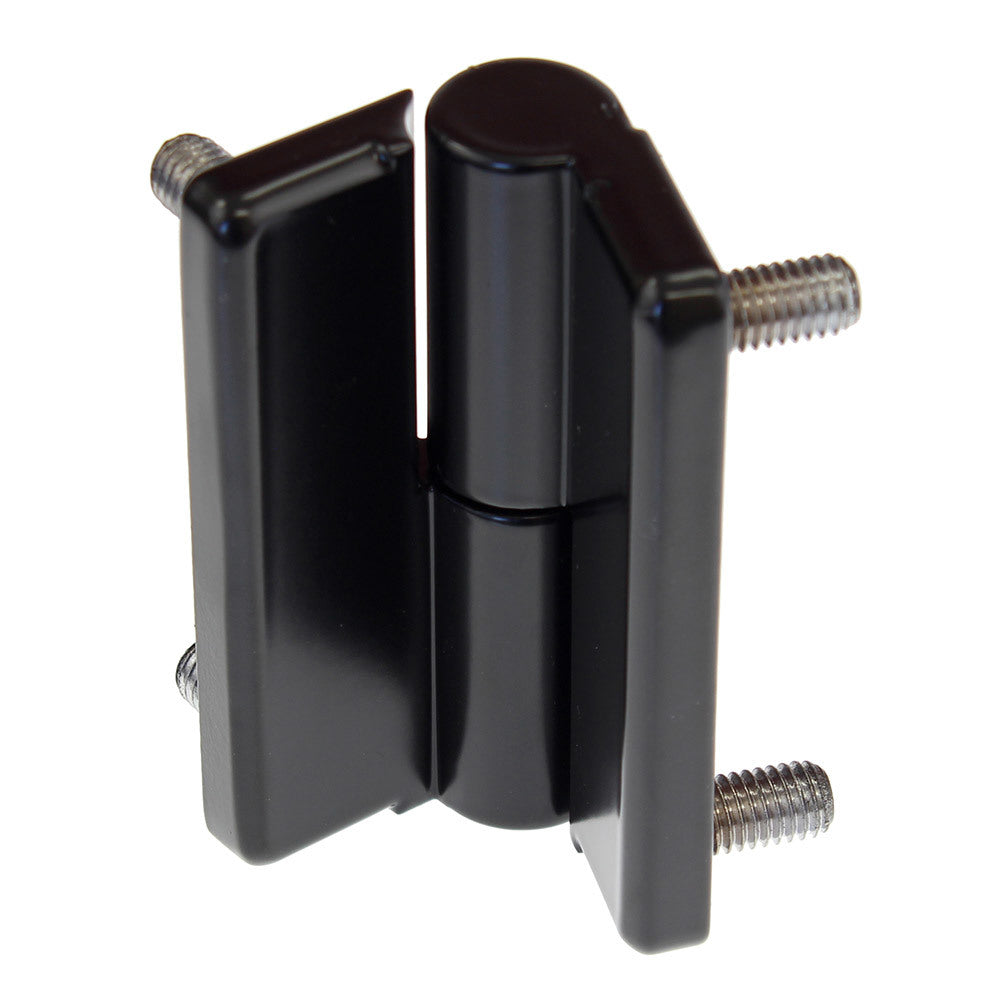

Black Die Cast Hinge - Heavy-Duty
Heavy-Duty Black Die Cast Hinge
The heavy-duty black die cast hinge is a durable blind-mount solution designed for automotive and industrial applications. Engineered for strength, smooth operation, and a clean low-profile finish, this heavy-duty hinge provides a secure and reliable pivot point for large canopy doors in demanding conditions.
Ideal as a replacement hinge for Rock Solid canopy doors.
Features
- Heavy-duty butt hinge
- Set to lift off or fix with allen key screw
- 64mm x 80mm hinge size
- Rear fixing blind-mount design
- With 4 x M8 15mm long screw studs
- UV-stable black powder-coated finish
- 304 stainless steel hinge pin
- Strong corrosion-resistant construction
- Smooth and reliable operation
- Professional concealed mounting appearance
- Suitable for automotive and industrial applications
Specifications
- Size: 80mm x 64mm
- Material: 304 stainless steel pin allen key removable
- Finish: Black UV stable powder coat
Important Note
Nuts not included.
| Mounting | Blind-mount M8 15mm long studs |
|---|---|
| Size | 80mm x 64mm |
| Finish | Black UV stable powder coat |
What's in the box
- 1 x Black Die Cast Hinge
Suits these builds
- Replacement hinges for rock solids canopy doors
- Great for any bolt on canopy door application
Important Note M8 Nuts not included.
Good to know
The four M8 studs fix from the rear, so there are no screw heads showing from the outside — just a clean, low-profile face like a factory Rock Solid build. The 304 stainless pin is allen-key removable, so you can lift the door straight off for servicing without unbolting the hinge. Note: M8 nuts aren't included — grab nylocs for vibration resistance before you start.
How to fit it
- Mark and drill the M8 holes
- Feed the studs through, secure with M8 nylocs
- Repeat for the other hinges
What you'll need
- Drill with drill bit
- Spanner/socket for M8 nuts
- M8 nylocs (not included)
